Specialized Capabilities for Allegro X
Allegro X Add-ons
Extend the Allegro X Platform with specialized add-ons — AI-driven design, RF mixed-signal, concurrent team design, and productivity utilities.
At a Glance
Four Add-ons to Extend Allegro X
Allegro X AI
RF Option
Symphony
Productivity Toolbox
Allegro X AI
AI-Assisted PCB Design to 10X Designer Productivity
AI-driven PCB design unlocks the ability to 10x productivity, enables quick informed decision-making, and lets designers focus on the work that moves the needle. Cadence reports customers seeing 50–70% design-time reduction, often shaving weeks off design cycles.
10X Productivity
Optimize Upfront
Remove Bottlenecks
Your IP Stays Yours
Placement AI
Reduce PCB placement tasks from days to hours or minutes — taking into account mechanical fixtures, height restrictions, assembly rules, room assignments, and connections.
Copper AI
AI-assisted PDN generation — incorporates power/ground nets, pin count, voltages, currents, and desired layers to converge on an ideal PDN quickly.
Route AI
New routing engine built ground-up to leverage modern infrastructure. Achieve design closure faster with unparalleled accuracy.
Design-Aware Assist
Built on the same data model you use today — uses your rules, settings, and embedded constraints as guides for intent-aware automation.
What Allegro X AI Is
- Physics-driven AI optimization engine
- Constraint-driven, repeatable outcomes
- Native in Allegro X and OrCAD X
- Built for high-capacity, production designs
What Allegro X AI Is Not
- General-purpose LLM / chatbot
- Hallucinating or unpredictable AI
- Third-party plugin or bolt-on
- Limited to test or prototype boards
More Add-ons
Three More Ways to Extend Allegro X
RF / Mixed-Signal

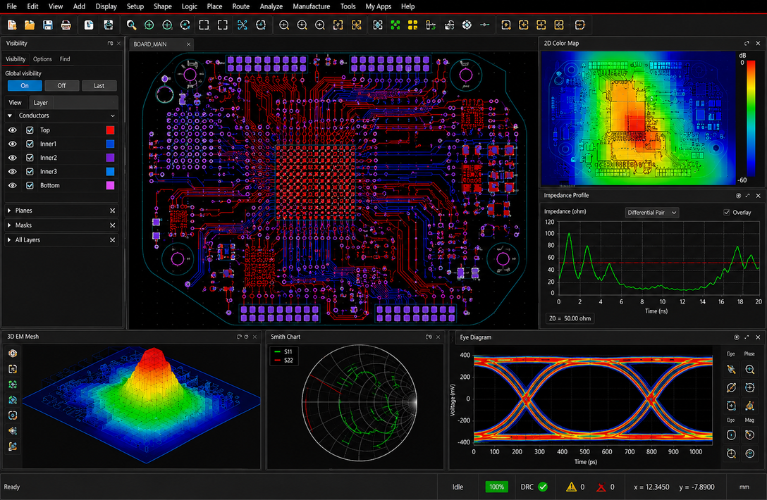

Allegro X RF Option
Integrate RF circuitry into a mixed-signal design in Allegro PCB Designer — bridging RF, analog, and digital workflows in one unified canvas.
- Integrated RF + digital + analog flow
- Drives RF structures into PCB layout
- Works alongside Cadence AWR RF design tools
- Avoids translation between RF and PCB toolchains
Concurrent Team Design

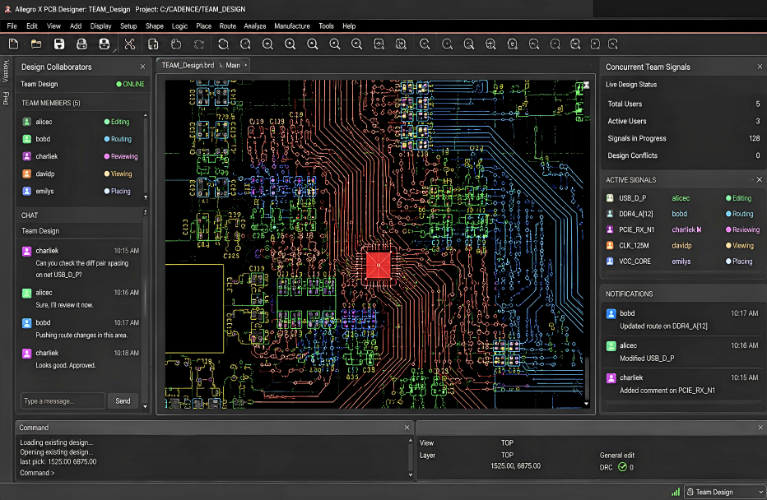

Allegro Symphony Team Design
One board, multiple designers, in real time — shortens the largest portion of your PCB layout design cycle. Routes advanced high-speed interfaces up to 80% faster.
- Shared canvas — concurrent multi-designer routing
- Distributed team option with partitioned canvas
- Ad-hoc mode — no setup required
- 3D visualization while in a session
- Constraint Manager exclusive editing per client
- Live netlist & MCAD imports without disconnecting
Productivity Utilities

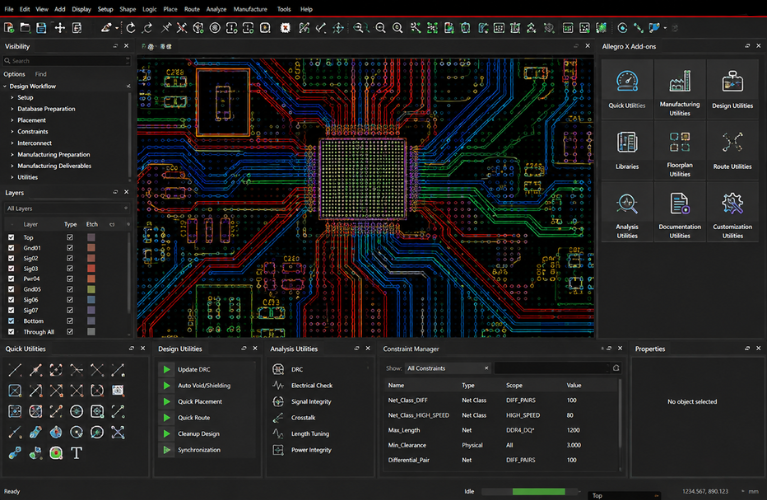

Allegro Productivity Toolbox
A comprehensive suite of utilities seamlessly integrated into the PCB Editor — streamline monotonous tasks and enhance existing layout capabilities.
- Polar Grids — circular placement & routing
- Coil Designer — planar spiral inductors
- Shield Router & Shield Generator
- Mask Generator — oversized soldermask / pastemask
- Label Tune — auto-adjust refdes & values
- Panelization, Design Compare, Push 2 Grid, ZDRC & more
FAQs
Add-on Questions, Answered
Allegro X AI is never trained on customer data or designs. Cadence uses its own library of designs along with 30+ years of PCB design expertise to train Allegro X AI. Your IP is safe.
Runs vary from minutes to hours based on design complexity — but always orders of magnitude faster than manual methods. Multiple runs can execute in parallel.
Currently the AI engine runs on secure Amazon Web Services infrastructure with data protection at all times. An on-premise solution is coming soon.
Currently X AI supports designs with up to 5,000 components, and does not yet support flex / rigid-flex. The supported envelope is constantly expanding.
X AI runs inside Allegro X or OrCAD X — but design importers let you bring in projects from Altium, KiCAD, Eagle, PADS, etc., then run X AI on them.
Symphony Team Design is the recommended add-on for concurrent multi-designer routing in real time. Ad-hoc mode means no upfront setup; structured server-hosted mode is also supported.
Yes — the Productivity Toolbox is part of both the Allegro X and OrCAD X product families.
APD (Advanced Package Designer) and Sigrity XtractIM are part of the IC Package Design family, not Allegro X Add-ons. They're purpose-built for IC packaging — covered separately on the IC Package Design page.
Get Started
Add the Right Capabilities to Allegro X
Whether you want AI in your flow, RF mixed-signal design, concurrent team design, or productivity utilities — Craftronics will help you scope and license the right add-ons.
