Automated, Cost-Driven Decap Optimization

Sigrity X OptimizePI

Automated decoupling-capacitor selection and placement to hit PDN targets at the lowest possible cost. Save 15–50% in decap BOM cost while maintaining system performance — and run signoff up to ~8.5X faster than Sigrity 2019.

Overview

Cheapest Decap Scheme That Still Meets the Spec

OptimizePI automates the selection and placement of decoupling capacitors to meet power-delivery-network (PDN) performance targets at the lowest possible cost. It performs complete AC frequency analysis of boards and IC packages — pre-layout or post-layout — and pinpoints the best decap choices and locations.

Built on proven hybrid EM-circuit analysis combined with a unique Sigrity optimization engine — enabling true cost-based PDN design instead of trial-and-error tinkering.

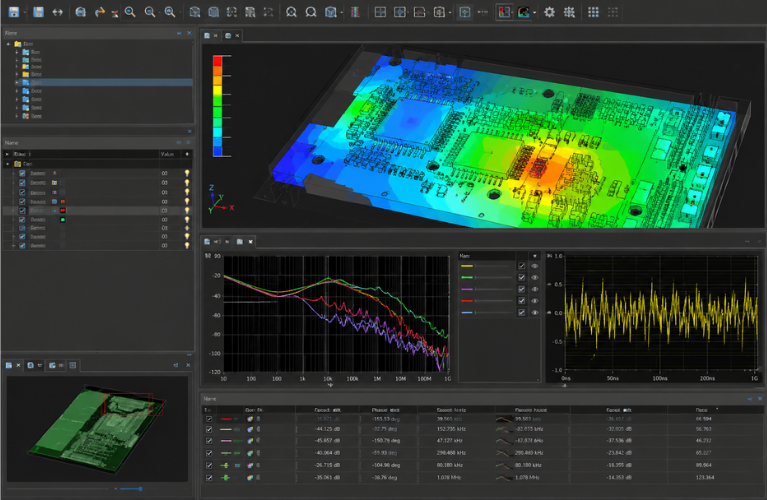

Sigrity X OptimizePI

15–50%

Decap BOM cost savings

while maintaining PDN performance

~8.5X

Faster than Sigrity 2019

42 hours → under 5 hours on a PCB+package run

< 30 min

Typical setup time

guided step-by-step through every task

Capabilities

What OptimizePI Does

Automated Decap Selection

The optimization engine explores the feasible design space and identifies a range of candidate decap implementations.

Optimal Placement

Find the right locations on the board / package for each decap — not just which parts to use, but where to put them.

Cost vs Performance

Interactively assess cost-vs-performance tradeoffs — pick the BOM that balances PDN signoff with bill cost.

PCB, Package, or Both

Apply to PCBs, IC packages, or a combined PCB-plus-package analysis for end-to-end PDN optimization.

Pre + Post Layout

Run early to set the right decap budget — and again post-layout to refine the implementation before tape-out.

PowerTree Integration

PowerTree information captured during schematic design feeds OptimizePI — simulate individual power rails as they develop.

Workflow

From Layout to Optimized Decap Scheme

1

Import Design

Bring in your PCB / package layout and PDN definition. Setup takes typically under 30 minutes.

2

Define Targets

Specify target impedance, rails of interest, decap part library, and any BOM / placement constraints.

3

Run Optimization

OptimizePI explores the design space and identifies candidate decap implementations — best parts, best locations.

4

Update Layout

Push the optimized decoupling scheme back into Cadence PCB design tools automatically.

Where It Fits

Part of the Sigrity X PI Signoff Stack

OptimizePI works with Clarity 3D Solver and Allegro PCB Designer for end-to-end PDN analysis — and pairs naturally with PowerSI for upstream PDN characterisation and PowerDC for DC IR-drop signoff.

Common companion tools

  • PowerSI — AC frequency PI characterisation
  • PowerDC — DC IR drop and thermal-aware PI
  • Clarity 3D Solver — signoff EM extraction
  • Allegro X PCB Designer — layout source / target
  • Aurora for PCB — in-design PI checks

Get Started

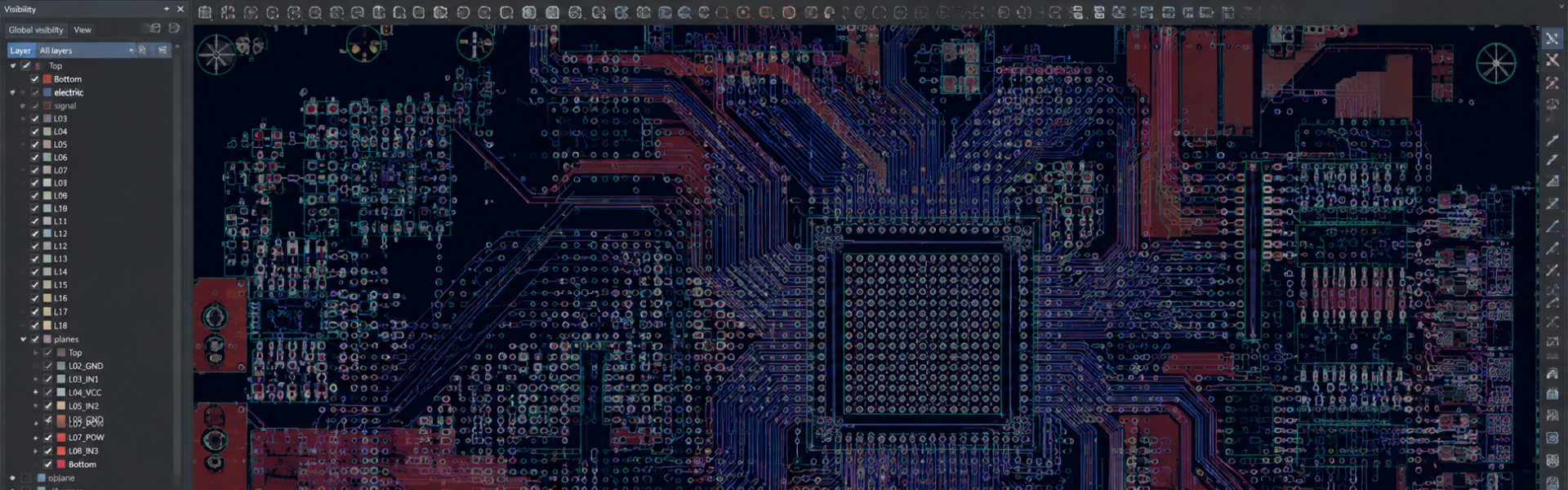

Cut Decap Cost. Hit Your PDN Target. Ship Faster.

Talk to Craftronics about Sigrity X OptimizePI for automated, cost-driven decap optimization in your PCB / package flow.
