The Art of Surface Modelling — 30+ Years of Innovation
ICEM Surf
Industry-leading Curve and Surface explicit geometry modelling tool for defining, analysing, and high-end visualisation of complex free-form shape CAD surface models — to the highest quality. The industry standard for Class A in automotive, aerospace, consumer goods, and press-tool design.
Overview
Micron-Level Accuracy for Class A Quality
ICEM Surf provides solutions for direct surface modelling, refinement, reconstruction, and scan modelling. Advanced tools such as Global Modelling and industry-defined analysis tools let designers detect subtle surface problems and check compliance with regulations — while simultaneously performing high-precision surfacing and experiencing real-time 3D visualisation.
For more than 30 years, ICEM Surf has been seen as the best-in-class software for advanced surface modelling and Class A surfaces across industries.
30+
Years of innovation
Class A
Surface quality
Micron
Level accuracy
7
Functional modules
Key Benefits
Why ICEM Surf Remains the Industry Standard
Industry-Standard Class A
For 30+ years, the best-in-class software for advanced surface modelling and Class A surfaces across many industries.
High-Performance Curve & Surface
A wide range of advanced surfacing tools to design and manipulate all shapes, curves, and surfaces with accurate, high-precision results.
Real-Time Visualisation & Analysis
Real-time visualisation, surface analysis, and quality control — meet the highest quality level for Class A surfaces. Tutorials and community take designs further.
Integrated Design Workflow
Combine with other CAD systems — CATIA, 3DEXPERIENCE, DELTAGEN — and collaborate in a unified, integrated design workflow.
Modules
"Class A" at Its Best
Accelerated surface creation with specialised analysing tools, safety analyses, and reverse engineering functions — across 7 modular packages.
Define complex free-form shapes with Class A quality

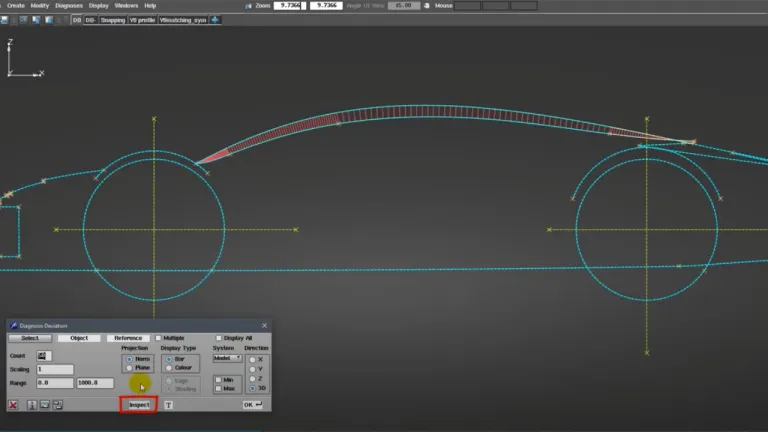

ICEM Surf Professional
Industry-leading Curve and Surface modelling tools. Control Point manipulation & Matching for micron-accuracy shape control. Real-time dynamic diagnostic tools — numerical and graphical — ensure aesthetic, engineering, and legislative quality.
Advanced master modelling

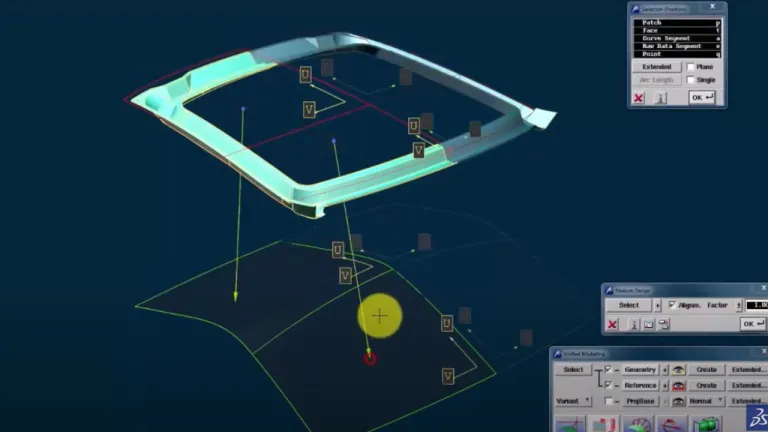

ICEM Surf Master
Build on Professional with additional master-level surface modelling capabilities for the most demanding projects.
Specialist productivity acceleration

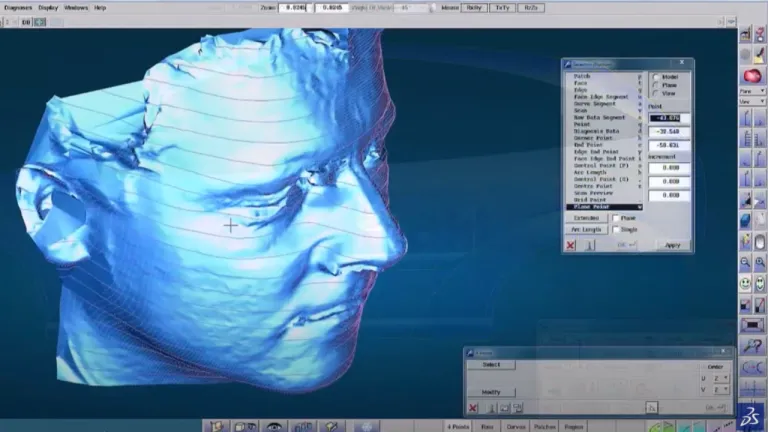

ICEM Surf Magic
Specialist tools that accelerate complex surface tasks — applied automation that the master modeller would otherwise build manually.
Extended diagnostic and authoring toolkit

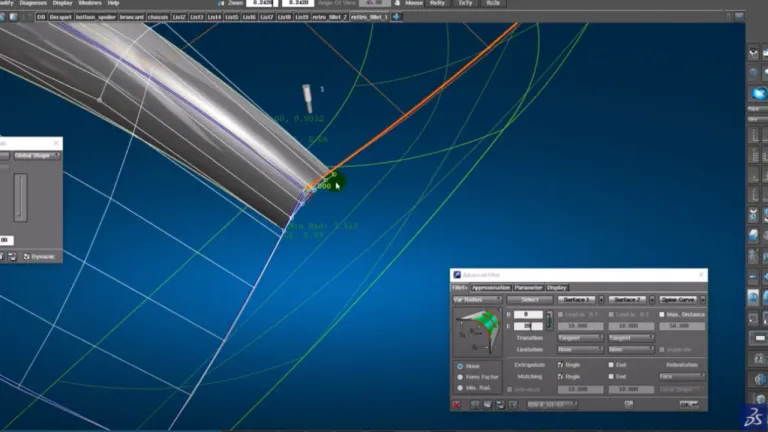

ICEM Surf Advanced Tools
Power-user toolkit for advanced authoring scenarios, diagnostics, and quality assurance beyond the Professional baseline.
Regulatory compliance checking

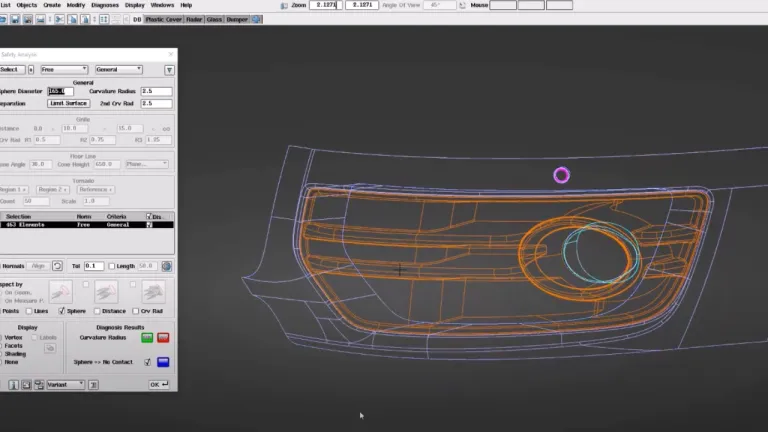

ICEM Surf Safety Analysis
Industry-defined safety and compliance analysis tools — detect subtle surface problems and verify against regulations directly inside the modeller.

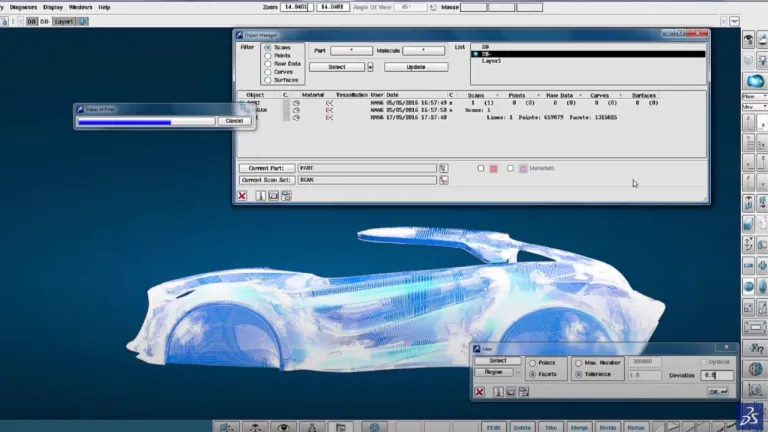

Reverse engineering from 3D scans
ICEM Surf Scan Modelling
Scan modelling for reverse engineering — turn point clouds and scan data into clean Class A surface models.
Photoreal real-time visualisation

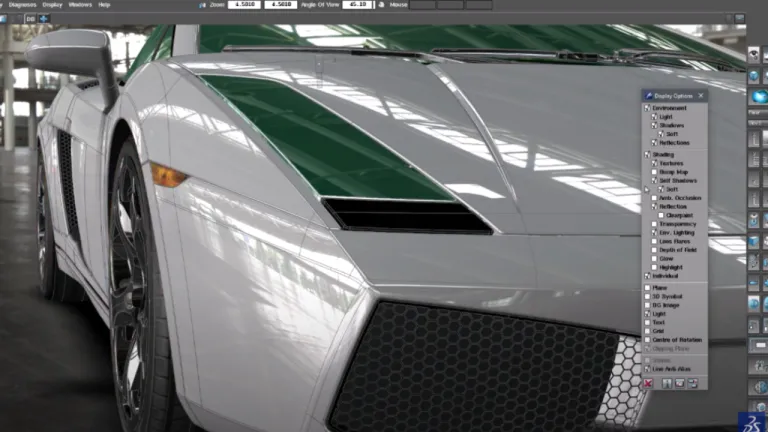

ICEM Surf Realtime Rendering
High-end real-time rendering integrated into the modeller — plus an add-on that integrates directly with 3DEXCITE DELTAGEN for ultimate visualisation realism.
Connectivity
Direct Interfaces to the Tools You Run
ICEM Surf doesn't live alone — it plugs into your existing CAD / PLM / visualisation stack.
CATIA & 3DEXPERIENCE
ICEMDB is the native database — seamless data exchange between ICEM Surf and CATIA / 3DEXPERIENCE solutions.
3DEXCITE DELTAGEN*
Add-on integrates directly with DELTAGEN — Dassault's world-leading high-performance real-time visualisation software.
Siemens NX*
Direct data-exchange interface enables sharing between ICEM Surf and Siemens NX environments.
PLM-Link*
Open, flexible toolkit designed to integrate ICEM Surf into a variety of third-party PLM systems.
* requires additional license
Industries
Where Class A Surface Is Non-Negotiable
Automotive Styling
Aerospace
Consumer Goods
Press-Tool Design
Get Started
Class A Surfaces, Done Right
Talk to Craftronics about ICEM Surf — the surface modeller automotive, aerospace, and consumer-goods teams standardise on.
