Up to 80% of engineering time is still spent on geometry pre-processing and meshing. Cadence's pre-processing family cuts that time from days to hours with advanced automation and high-fidelity meshes — for CFD, FEA, and the full multidisciplinary CAE workflow.
Overview
Stop Losing Engineering Time to Meshing
GPU acceleration delivered up to 10X speed-up for CFD solvers — but the real bottleneck moved upstream. Engineers still spend most of their time wrestling with dirty CAD, sealing holes, and tuning mesh quality.
Cadence's pre-processing family — Fidelity Pointwise, Autogrid, Hexpress, Autoseal, Stitch, plus ANSA and RETOMO from the BETA CAE acquisition — turns that bottleneck into a one-day task with 100% viscous-layer coverage and meshes that converge fast in your solver.
7
Pre-processing products
100%
Viscous-layer coverage
100M
Cells in minutes
Days→Hrs
Time from days to hours
Why It Matters
Mesh Quality Is the Key to CFD Success
High-Fidelity Mesh
Dedicated workflows and best practices per application — fully interactive or automated meshing across V2S and S2V approaches.
Fast & Reliable
Strong automation and robust algorithms ensure reliable, high-quality mesh generation for the most complex geometries.
Mesh Optimisation
Algorithms optimise and smooth meshes to meet solver quality criteria — skewness, non-orthogonality, adjacent volume ratio.
Faster Convergence
High-quality meshes lead to more robust computations and improved solver convergence — faster time to results.
The Family
Seven Pre-Processors, One Workflow
From interactive control to fully automated meshing — pick the tool matched to your geometry, your team, and your turn-around target.
Fidelity Pointwise
Interactive CFD meshing with deep control. Hybrid viscous, structured, overset, and high-order meshing. Glyph scripting for automation.
Learn More
Fidelity Autogrid

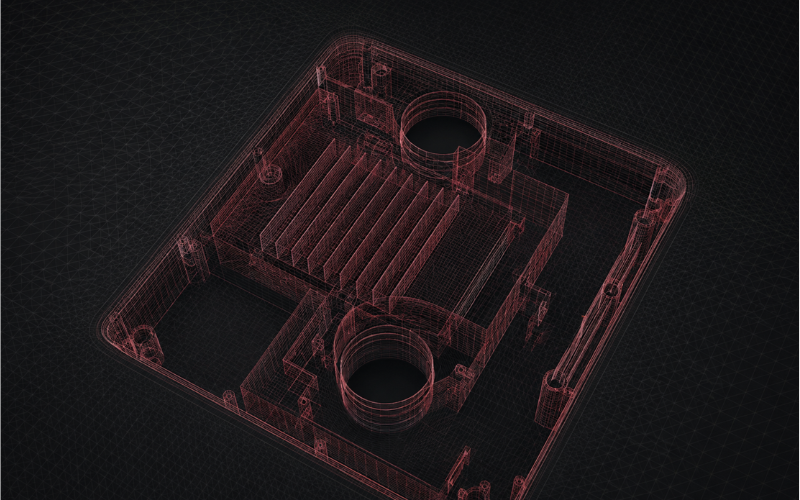

Automated mesh generation in near real-time. Combines unstructured, structured, and Voronoi meshing in a single workflow.
Learn More
Fidelity Hexpress
Full-hex / hybrid meshing with 100% viscous-layer coverage. Distributed parallel meshing — 100M cells in minutes.
Learn More
Fidelity Autoseal
Automatic geometry hole-sealing for dirty CAD. Honda cut cabin sealing from one week to one hour with Autoseal.
Learn More
Fidelity Stitch
Automatic surface stitching to turn disjoint CAD surfaces into watertight, mesh-ready geometry.
Learn More
ANSA Pre-Processor
Multidisciplinary CAE pre-processor from BETA CAE — CFD, crash, NVH, durability. Full model build-up from CAD to solver input.
Learn More
RETOMO
Image-based meshing that turns CT scans into ready-to-run CAE models. Multi-material segmentation in a single pass.
Learn MoreWhich One, When?
Match the Tool to the Problem
| If you need… | Reach for… |
|---|---|
| Fine-grained interactive mesh control | Fidelity Pointwise — for analysts who need control over every region; Glyph scripting captures organisational best practice. |
| Hands-off automated meshing | Fidelity Autogrid or Hexpress — near real-time mesh generation with high automation. |
| Full hex / hybrid mesh + 100% viscous | Fidelity Hexpress — boundary-layer coverage and 100M-cell scaling. |
| Dirty CAD with holes / gaps | Fidelity Autoseal — automatic geometry hole-sealing. |
| Disjoint surfaces / free edges | Fidelity Stitch — automatic surface stitching to watertight. |
| Multi-disciplinary FEA + CFD model | ANSA — single environment for CFD, crash, NVH, durability decks. |
| Mesh from CT / image data | RETOMO — image-based meshing with multi-material segmentation. |
Common Capabilities
What This Family Brings Across the Board
Anisotropic Meshing
Optimised mesh for physics and geometric features (leading / trailing edges) — highest accuracy with dramatic cell-count reduction.
Boundary-Layer Excellence
Reliable, high-quality boundary-layer meshing — 100% viscous-layer insertion for S2V and V2S methods.
Hybrid Meshing
Seamlessly combine structured and unstructured meshing in one project — no conversion needed for the Fidelity Flow solver.
Mesh Export to 30+ Solvers
Support for 30+ common CAE solvers (commercial and academic). One-click export to OpenFOAM.
Distributed Parallel Meshing
Parallel and scalable mesh generation — generate high-quality meshes with 100M cells in minutes.
Python & Glyph Automation
Full scripting APIs (Python and Glyph) — automate CAD cleanup and meshing or the entire CFD workflow headless.
Get Started
Stop Burning Engineering Time on Meshing
Talk to Craftronics about Cadence's CFD pre-processing family — pick the tool, or pick the bundle.
